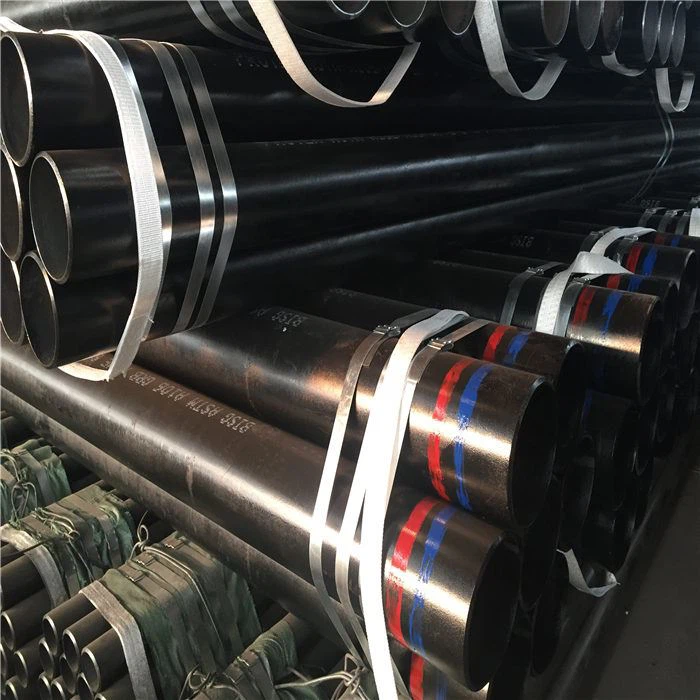

Seamless Pipe ASTM A106 C 10IN Diameter XS 12M Length
ASTM A106 A106MStandard Specification For Seamless Carbon Steel Pipe For High-Temperature ServiceCarbon Steel Pipe
Product Introduction
ASTM A106 / A106M Standard Specification For Seamless Carbon Steel Pipe For High-Temperature Service
Carbon Steel Pipe ASTM A 106 Gr C pipes are used in the construction of petrochemical plants, power plants, oil and gas refineries, boilers and ships wherein fluids are transported.
Sizes: 1/8″ NB – 30″ NB
Wall Thickness available:Schedule 20 – Schedule XXS (heavier on request) up to 250 mm thick.
| SPECIFICATION | A106 NPS 1/8 — 30" ANSI Schedules to 160 |
|---|---|
| SCOPE | Covers SEAMLESS carbon steel nominal wall pipe for high-temperature service, suitable for bending, flanging and similar forming operations.
NPS 1 1/2 and under may be either hot finished or cold drawn. NPS 2 and larger shall be hot finished unless otherwise specified. |
| KINDS OF STEEL PERMITTED FOR FOR PIPE MATERIAL |
Killed Steel Open-hearth Electric-furnace Basic-oxygen |
| HOT-DIPPED GALVANIZING |
Not covered in specification. |
| PERMISSIBLE VARIATIONS IN WALL THICKNESS |
The minimum wall thickness at any point shall not be more than 12.5% under the nominal wall thickness specified. |

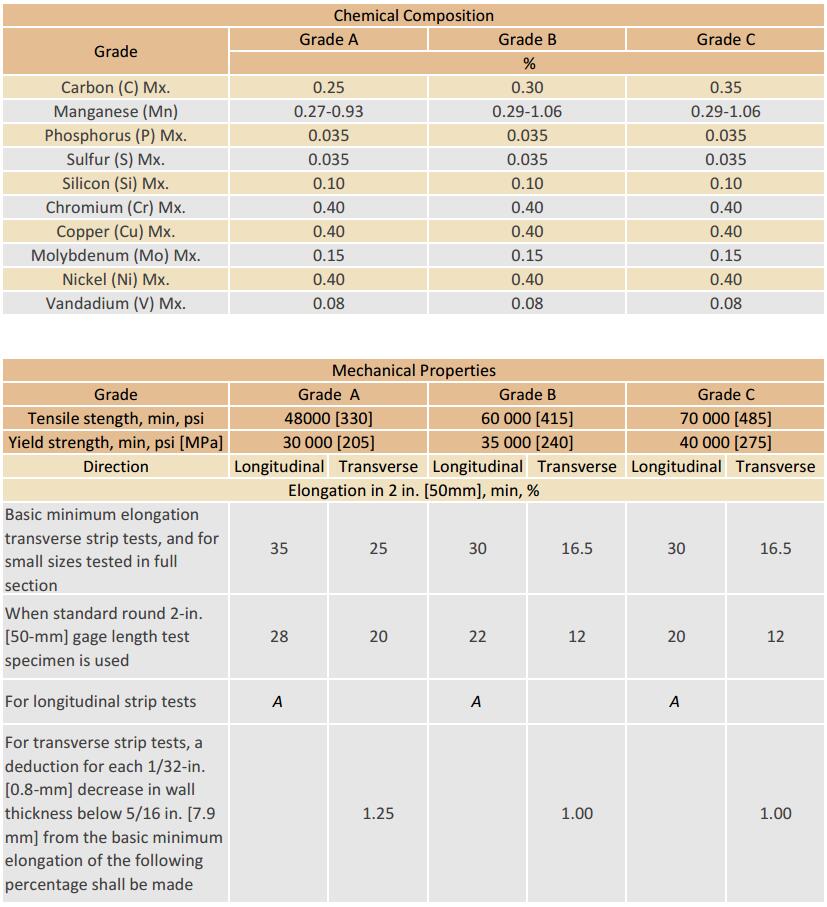

ASTM A106 Grade B Pipe Chemical Compositions And Mechanical Strength
